Antarctic Circumpolar Current region#


▶️ Snapshots

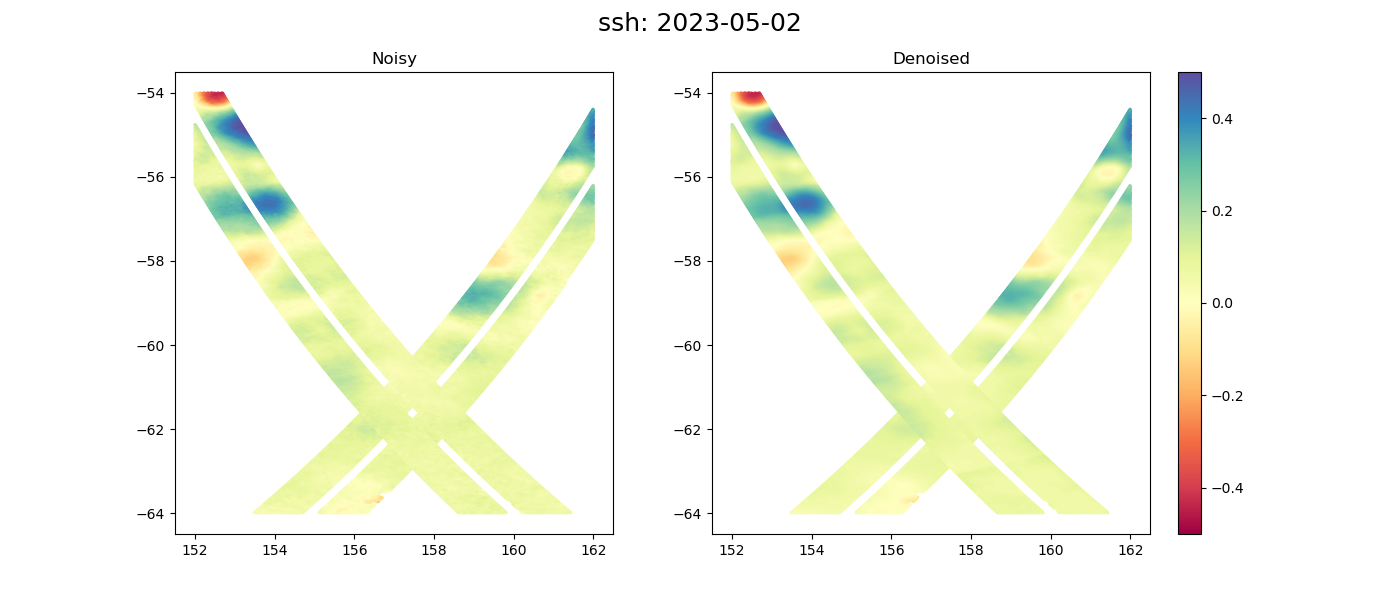

SSH

1d ACC ssh

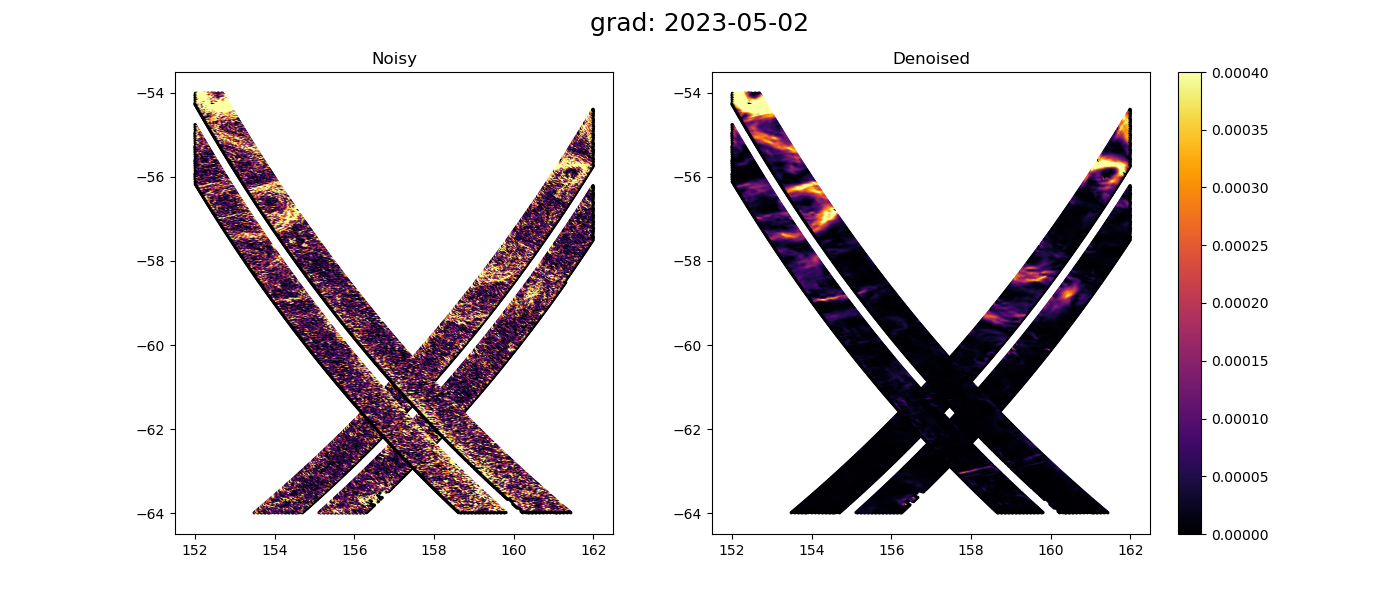

Gradients of SSH

1d ACC ssh

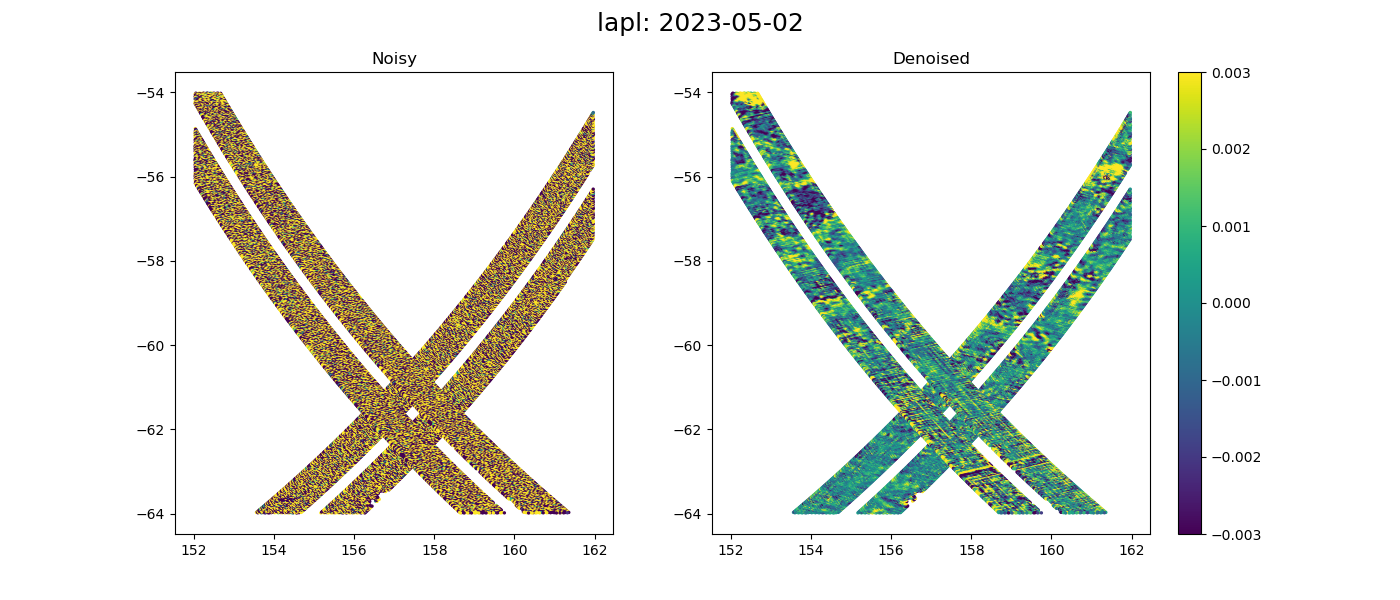

Laplacian of SSH

1d ACC ssh

▶️ Movies

SSH

Gradients of SSH

Laplacian of SSH

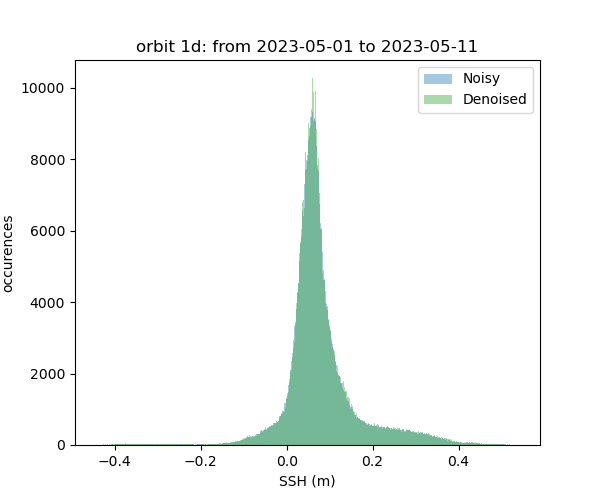

▶️ Physical pdf

SSH

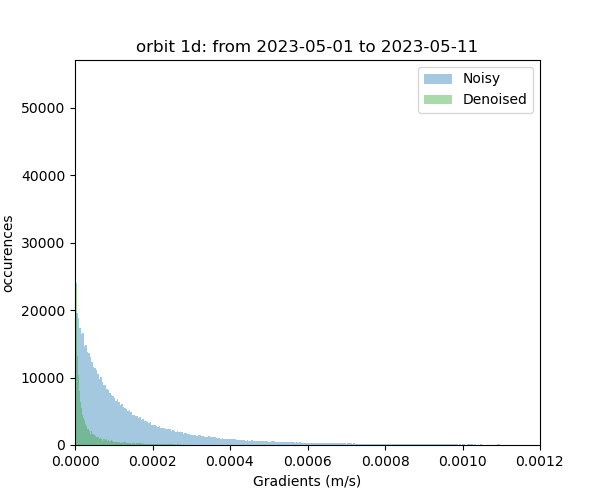

Gradients of SSH

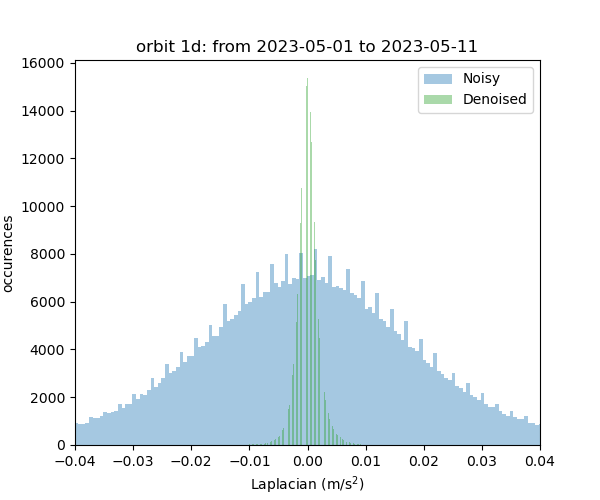

Laplacian of SSH

1d ACC ssh

1d ACC ssh

1d ACC ssh

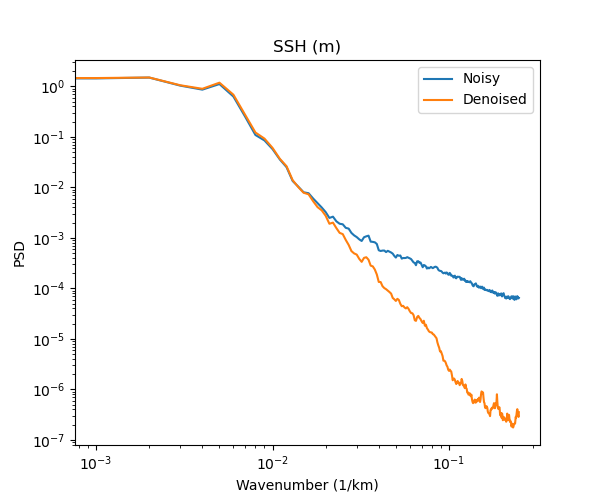

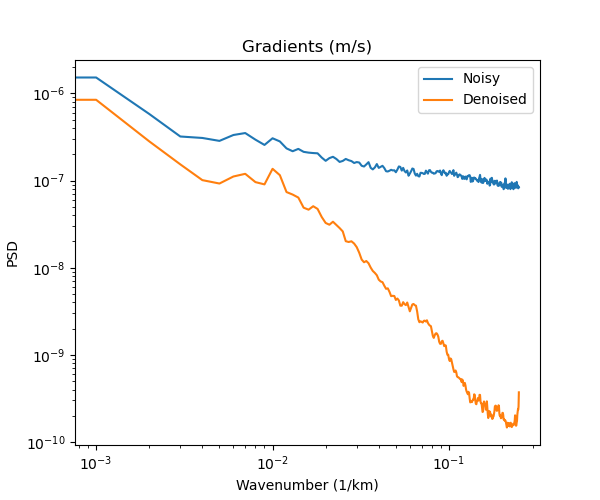

▶️ Power Spectrum Density

SSH

Gradients of SSH

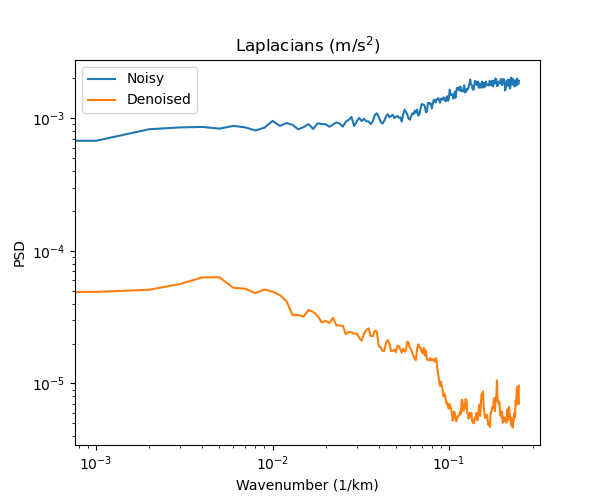

Laplacian of SSH

1d ACC ssh

1d ACC ssh

1d ACC ssh

▶️ Roberts discontinuities

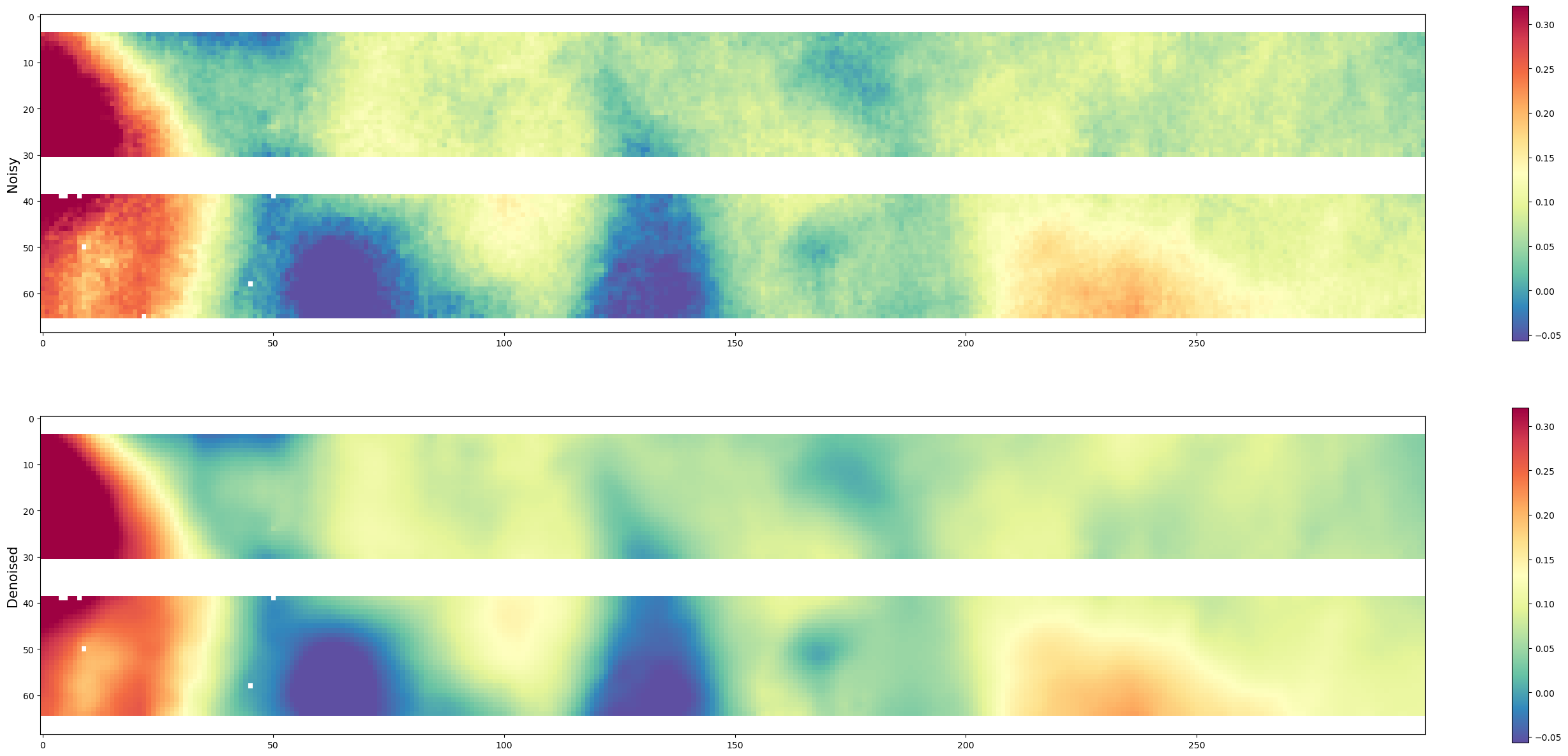

SSH

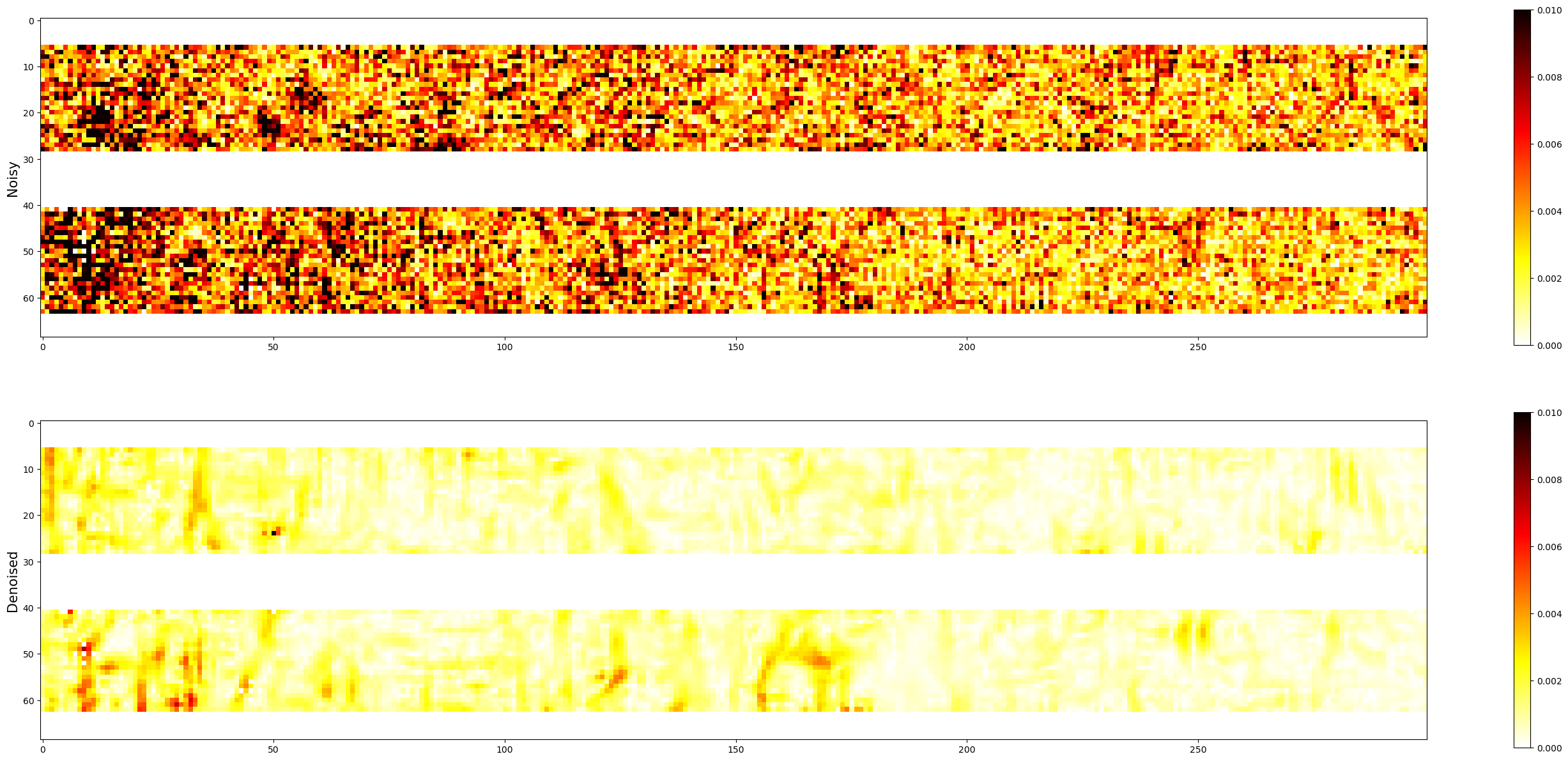

Gradients of SSH

1d ACC ssh

1d ACC ssh

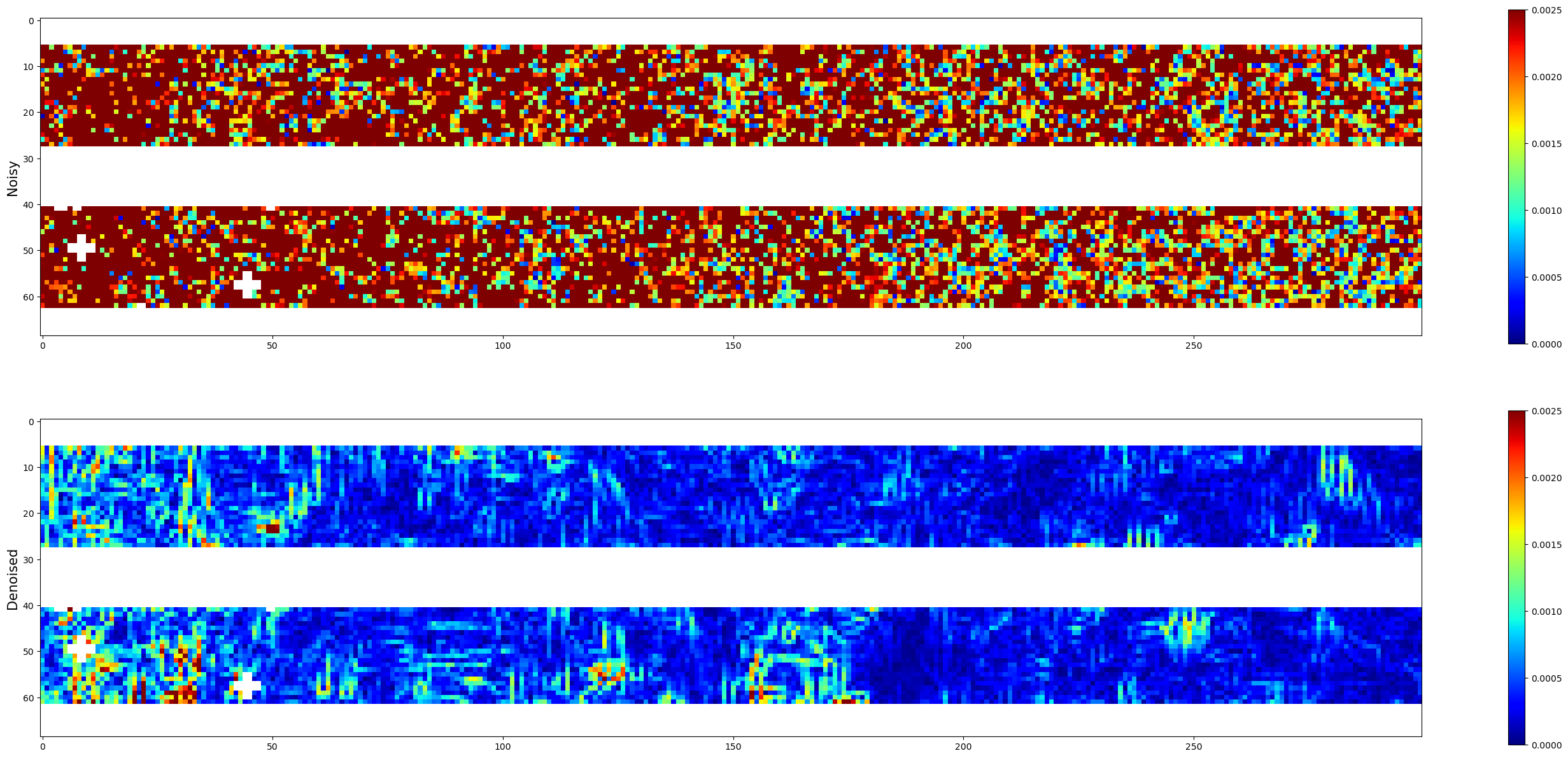

Roberts discontinuities

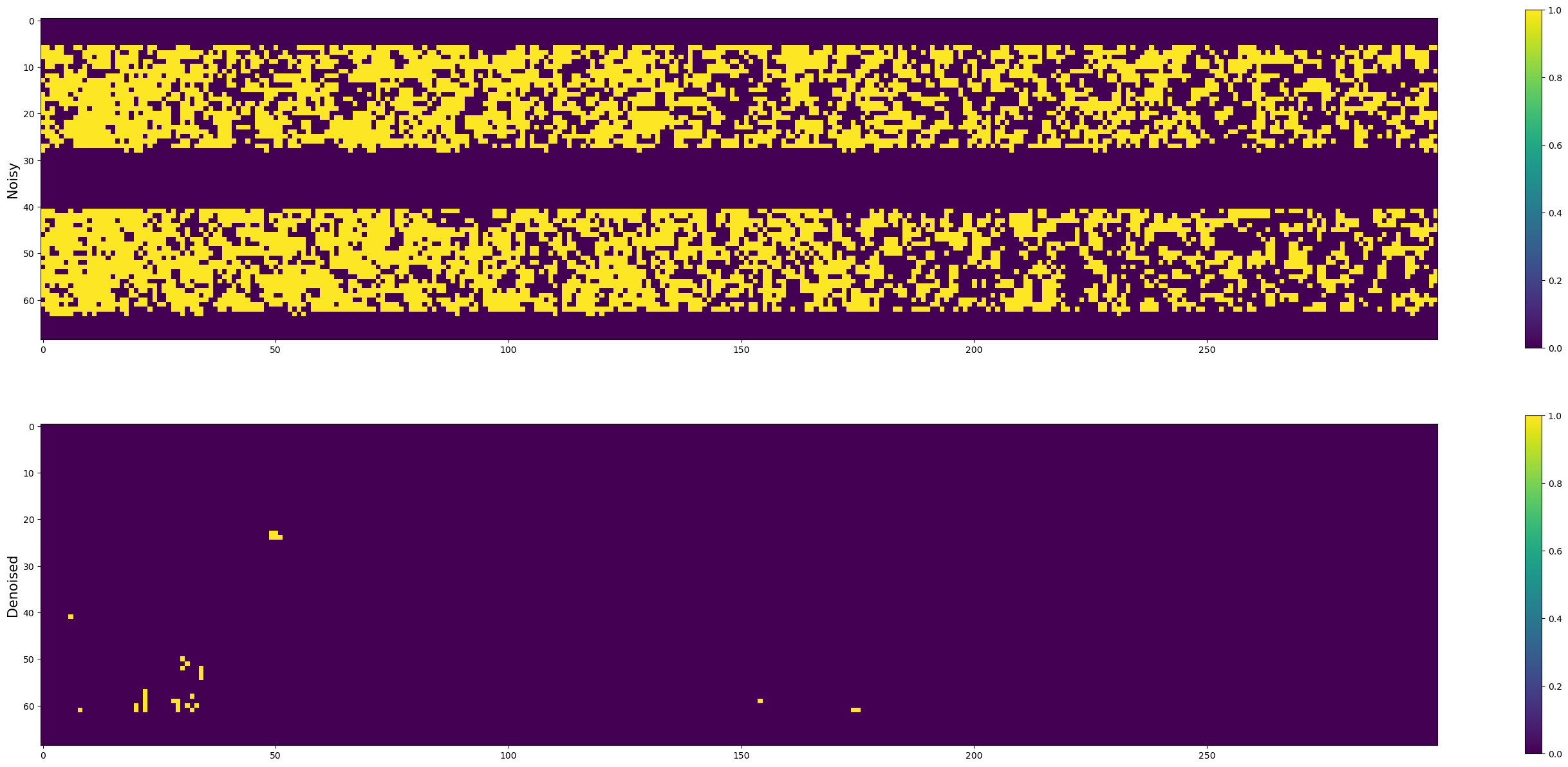

Masked Roberts discontinuities

1d ACC ssh

1d ACC ssh

Total discontinuity percentages

Discontinuity scores based on the Roberts discontinuities. The scores correspond to the percentage of yellow points with respect to the blue points in the “Masked Roberts discontinuities” Figure above.

  • Noisy SWOT discontinuities: 25.16 %

  • Denoised SWOT discontinuities: 0.12 %

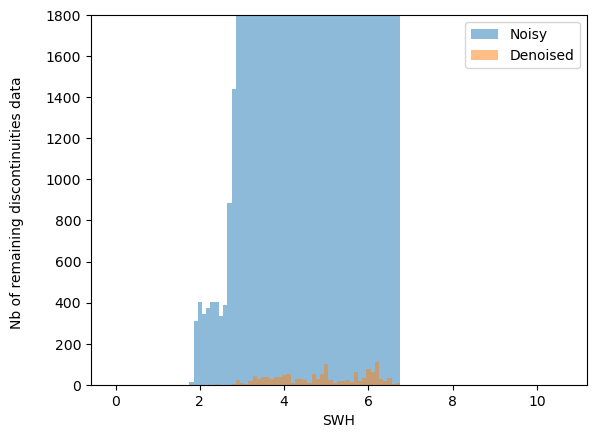

Discontinuities function of SWH

1d ACC ssh

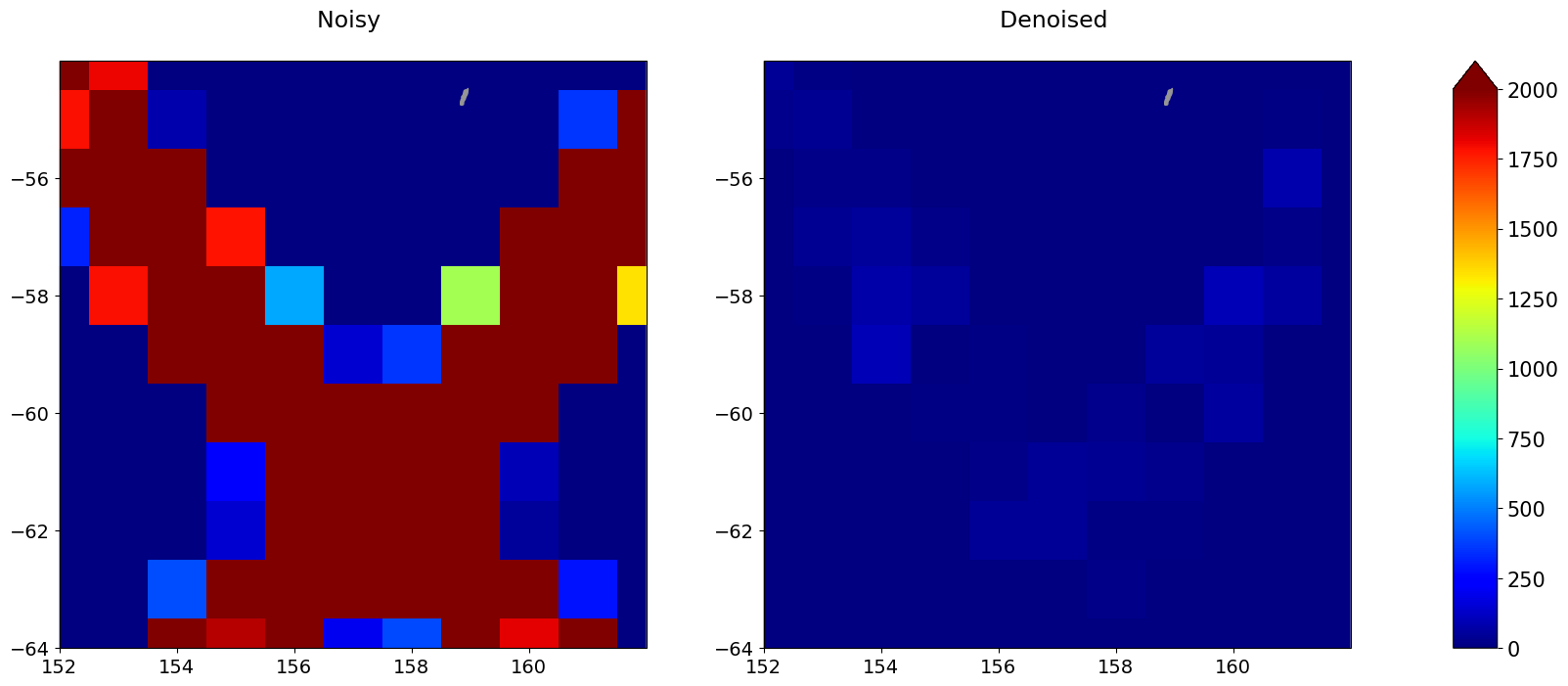

Discontinuities spatial distribution

1d ACC ssh

▶️ Structural similarities over 1 day repeat

On pass 20

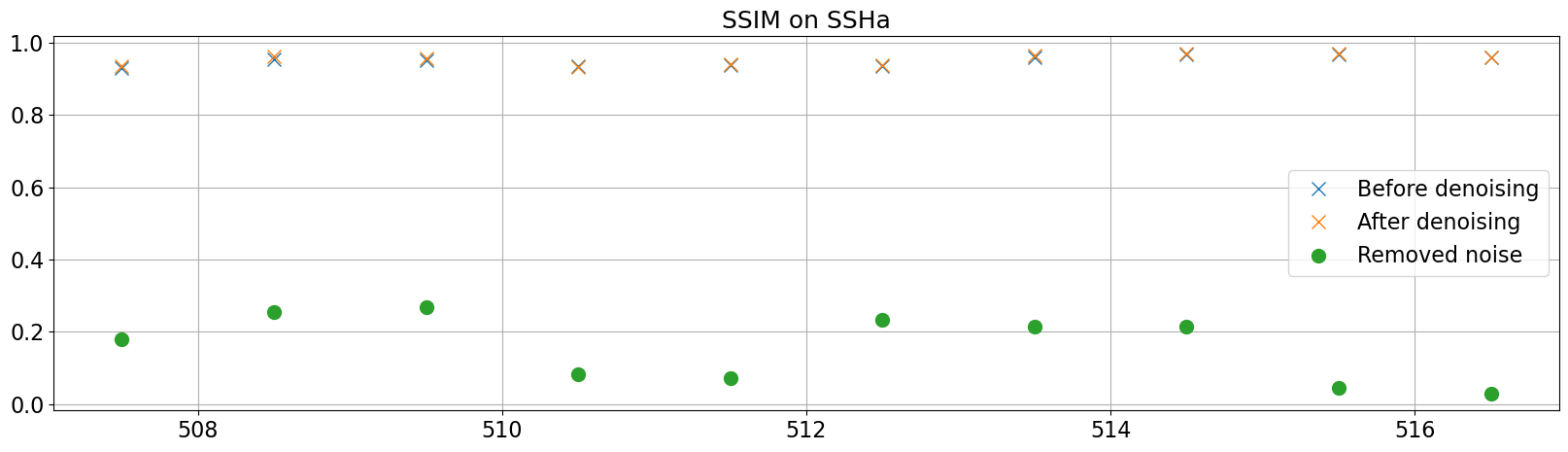

SSHa

1d ACC ssh

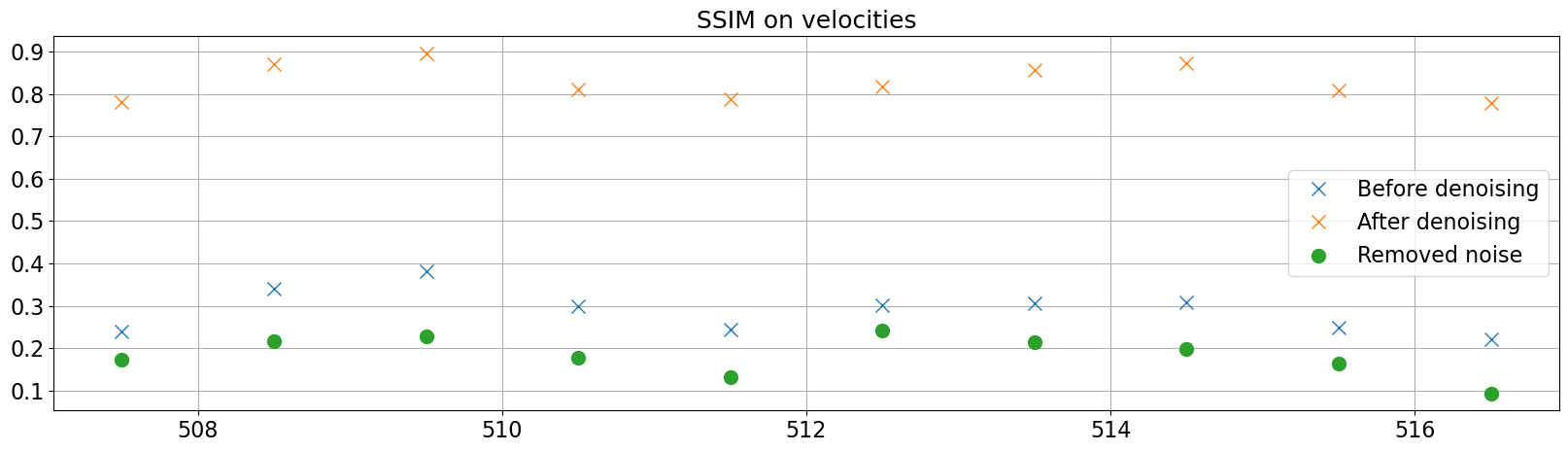

Velocities

1d ACC ssh

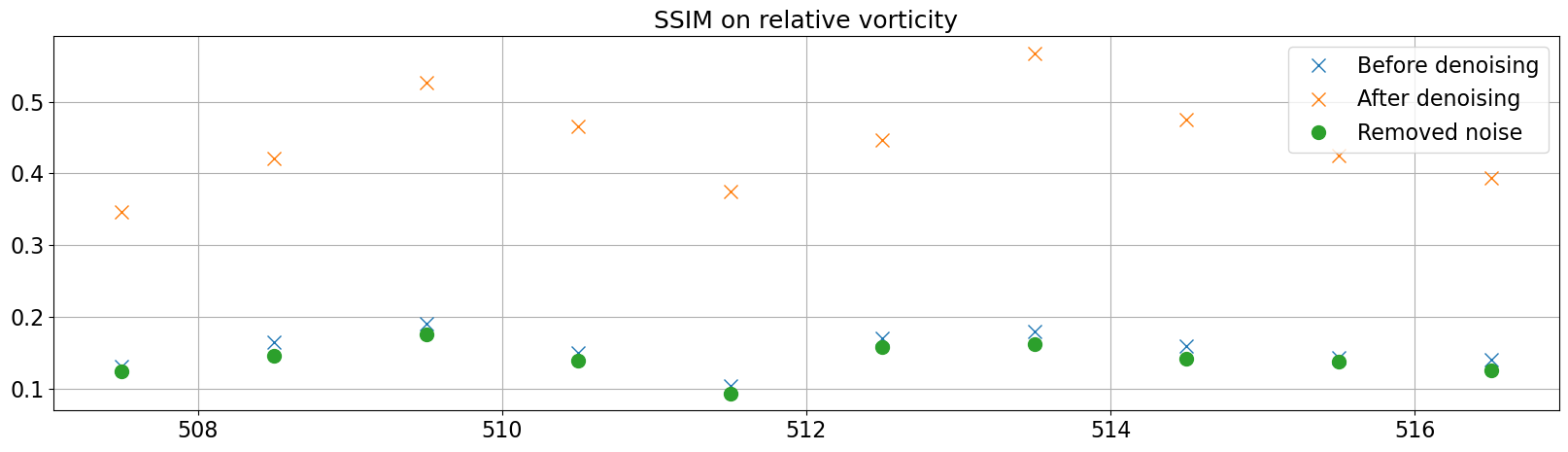

Relative vorticity

1d ACC ssh

Average SSIM on SSHa

SSHa

Velocities

Relative vorticity

Noisy SWOT

0.950

0.289

0.153

Denoised SWOT

0.953

0.828

0.444

Residual

0.159

0.184

0.140
